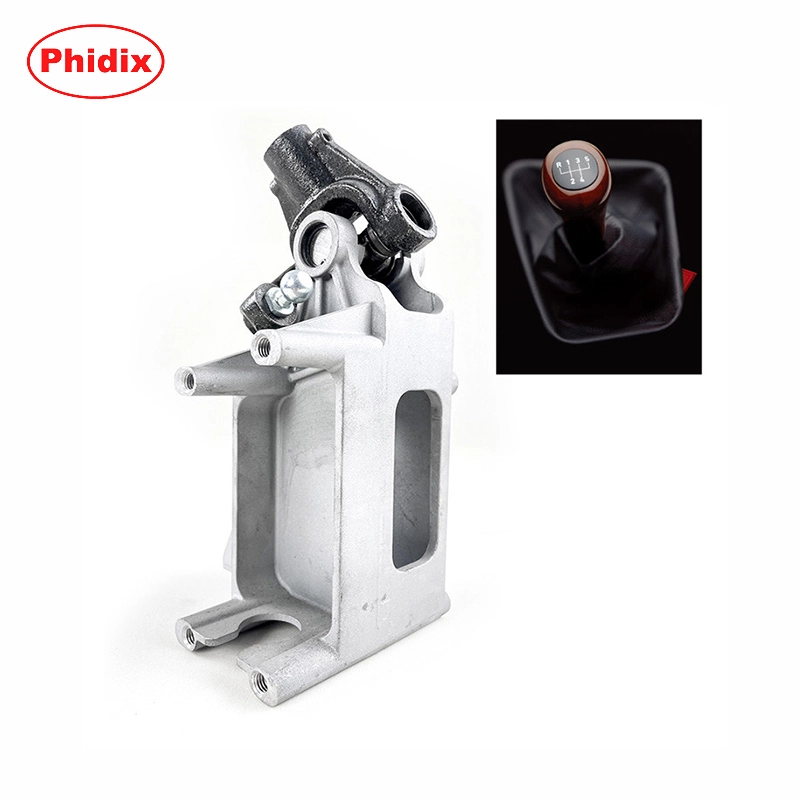

Manual Transmission Systems VGS Systems Industrial Vertical Gear Shifter—918 Series
Product Description：
The transportation industry has for many years searched for areliable shift system to replace the cumbersome and maintenance-prone rod linkages commonly used in cab over trucks and rearengine buses. As the need has increased, vehicles become morerefined to include the complexities of floating cabs, curb noiserestrictions and specialty vehicles of all types.We has developed a systems approachthat now makes remote shifting easier for both the vehicle builderand the operator.Based on the proven quality and performance of lowfriction control cables, this system provides a maintenance-freecost-effective approach to remote manual transmission shifting.We stands ready to solve your mostchallenging shifting problems with a full line of cab units andtransmission connecting hardware to suit most applications.
Specifications
| Certificate: | IATF16949 | |
| Brand: | PHIDIX | |
| Type: | 918 Series | |
| Material: | Pressure Die-cast Aluminum | |
| Applications: | Light Plant, Gricultural Vehicles, Small Commercial Vehicles,Etc | |
| Recommended Handle Lengths: | 160MM To 220MM | |
| Normal Working Load @ Knob: | 3KG (6.6 LB.) To 5KG (11LB) | |
| Accidental Overload @ Knob: | 100KG(220LB.) | |
| Operating Temperatures: | -40°C To 120°C (-40°F To 248°F) | |
| Feature: | Easy Installation, Adjustment Free, Maintenance-Free Life |
Applications
● Dash or center console mounted shifter
● Small commercial vehicles
● Servo assisted transmission— bus & coach applications
● Light plant/agricultural vehicles
● Low/medium duty cable applications
Material
● Pressure Die-Cast Aluminum
Other Related Products
● HGS Systems—923 Series
● HGS Systems—925 Series
Features
● Easy installation, adjustment free
● Maintenance-free life
● Ends gear jump out
● Clean precise shifts
● No knob-to-cab relative movement in floating cabs
● No action required to tilt cab
● Vibration from drive train is not transmitted
● Reduced cab noise levels
● Low cost
● Installation design to customer requirements
● Flexible capability with different cable end fittings
Technical Data
● Recommended handle lengths: 160mm to 220mm (6-¼" - 8-¼" approx.)
● Normal working load @ knob = 3kg (6.6 lb.) to 5kg (11lb.)
● Accidental overload @ knob = 100kg (220lb.)
● Operating temperatures: -40°C to 120°C (-40°F to 248°F)
● Weight: 1.1kg (2.4lb.)
Real Pictures
