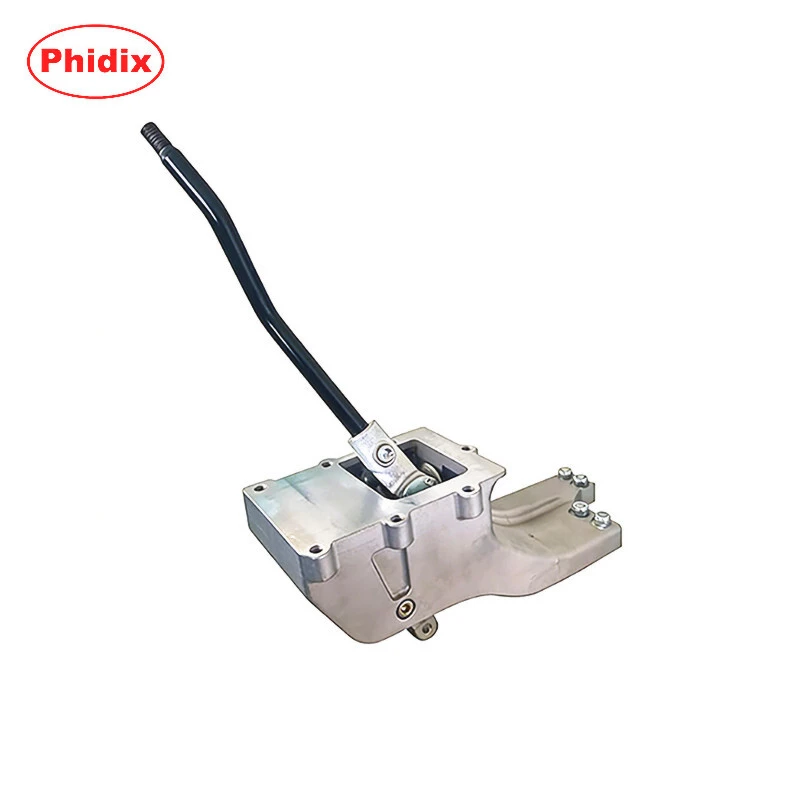

HGS System 925 Series Horizontal Manual Transmission Gear Shifter
Product Description：
This horizontal manual transmission gear shifter is an advanced solution for precise and reliable remote shifting in manual transmission vehicles. Developed to replace the traditional rod linkages that are often cumbersome and maintenance-heavy, this system offers a streamlined, maintenance-free approach to gear control.
Utilizing high-quality low-friction control cables, the HGS system ensures smooth, precise, and quiet gear changes, even in vehicles with floating cabs or complex chassis designs. Designed for both vehicle manufacturers and operators, it simplifies installation, reduces maintenance requirements, and enhances overall vehicle performance.
With a full range of cab units and transmission connecting hardware, the HGS system can be customized to meet the most demanding shifting requirements across trucks, buses, coaches, and industrial machinery.
Specifications
| Certificate: | IATF16949 |
| Brand: | PHIDIX |
| Type: | Gear Shifter |
| Material: | Pressure Die-Cast Aluminum |
| Recommended Handle Lengths: | 305mm To 380mm(12" - 15" approx.) |
| Normal Working Load: | 3kg TO 5kg |
| Accidental Overload: | 100kg (220lb.) |
| Operating Temperatures: | -40°C To 120°C (-40°F to 248°F) |
Applications
● Center console mounted shifter
● Servo & non-servo assisted transmissions
● Bus, coach & truck applications
● Heavy/medium plant/agricultural vehicles
● Heavy/medium duty cable applicationsMedium to light duty throttle compactors
Features
● Easy installation, adjustment free
● Maintenance-free life
● Ends gear jump out
● Clean precise shifts
● No knob-to-cab relative movement in floating cabs
● No action required to tilt cab
● Vibration from drive train is not transmitted
● Reduced cab noise levels
● Low cost
● Installation design to customer requirements
● Flexible capability with different cable end fittings
