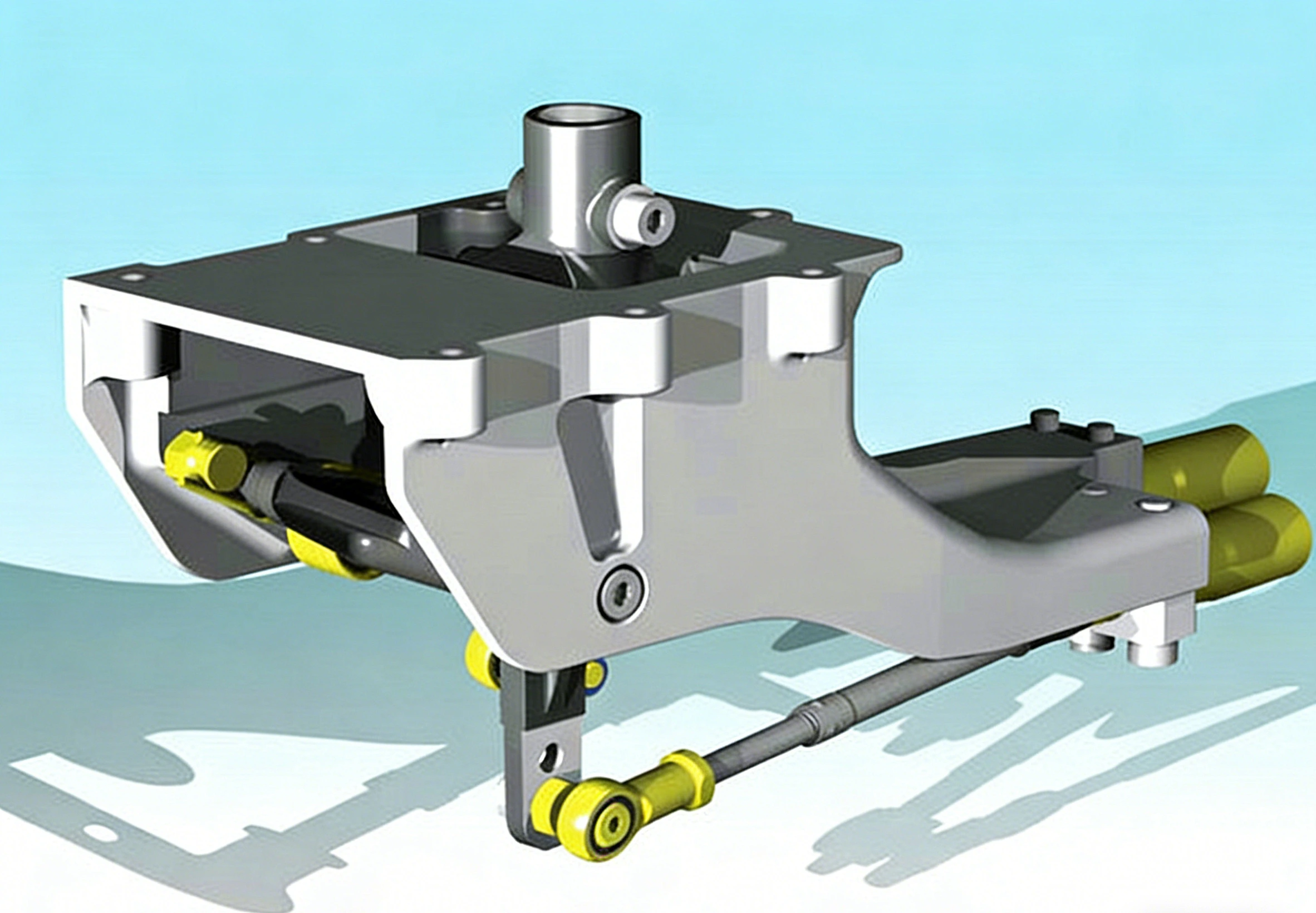

HGS Systems Industrial Horizontal Gear Shifter—925 Series
Product Description：
The 925 Series Industrial Horizontal Controller is a high-performance control solution engineered for precision, durability, and adaptability in demanding industrial environments. Built with advanced materials and ergonomic design, the 925 Series ensures smooth operation and reliable performance, making it an ideal choice for a wide range of industrial applications.
Specifications
| Certificate: | IATF16949 | |
| Brand: | PHIDIX | |
| Type: | 925 Series | |
| Material: | Pressure Die-cast Aluminum | |
| Applications: | Bus, Coach, Truck, Etc | |
| Recommended Handle Lengths: | 305 To 380 MM | |
| Normal Working Load @ Knob: | 3KG (6.6 lb.) To 5KG (11LB.) | |
| Accidental Overload @ Knob: | 100KG (220LB.) | |
| Operating Temperatures: | -40°C To 120°C (-40°F To 248°F) | |
| Feature: | Easy Installation, Adjustment Free, Maintenance-Free Life |
Applications
● Center console mounted shifter
● Servo & non-servo assisted transmissions
● Bus, coach & truck applications
● Heavy/medium plant/ agricultural vehicles
● Heavy/medium duty cable applications
Material
● Housing: Pressure Die-cast Aluminum
● Yoke & Select Arm: Investment Cast Steel
Other Related Products
● VGS Systems—918 Series
● HGS Systems—923 Series
Features
● Easy installation, adjustment free
● Maintenance-free life
● Ends gear jump out
● Clean precise shifts
● No knob-to-cab relative movement in floating cabs
● No action required to tilt cab
● Vibration from drive train is not transmitted
● Reduced cab noise levels
● Low cost
● Installation design to customer requirements
● Flexible capability with different cable end fittings
Advantages
The 925 Series Horizontal Controller delivers exceptional precision, reduced operator fatigue, and long-term reliability. Its customizable design and rugged performance make it suitable for both OEM applications and aftermarket replacements.
Technical Data
● Recommended handle lengths: 305mm to 380mm (12" - 15" approx.)
● Normal working load @ knob = 3kg (6.6 lb.) to 5kg (11lb.)
● Accidental overload @ knob = 100kg (220lb.)
● Operating temperatures: -40°C to 120°C (-40°F to 248°F)
● Weight: 3.0kg (6.6lb.)
Real Picture
