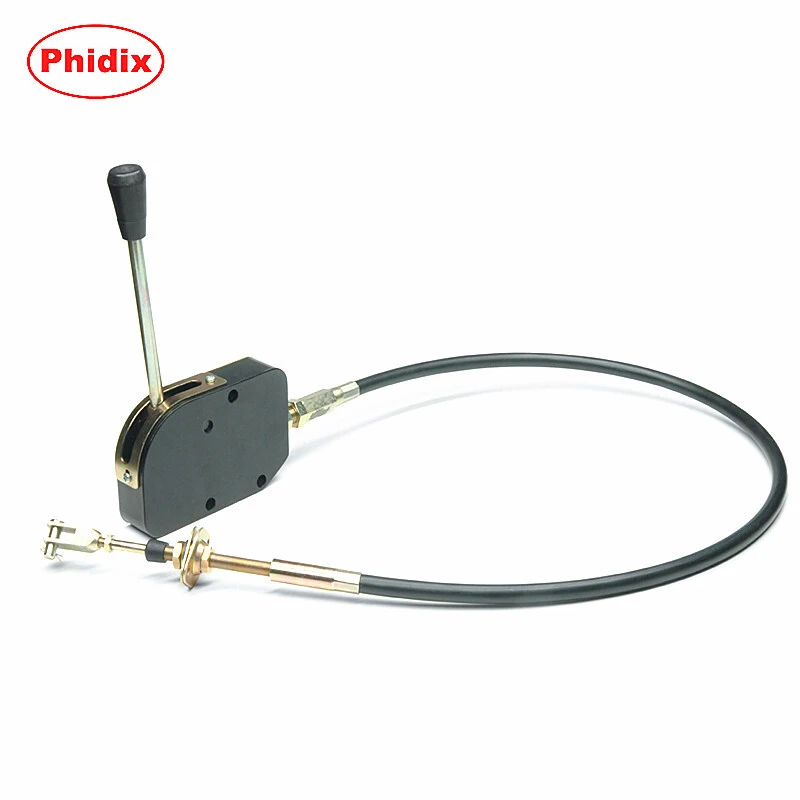

Model CH400 Leverstak Industrial Hand Control Lever Throttle Control Lever
Product Description：
The Leverstak hand control is designed to extensively cover the agricultural equipment market. One of its major uses today is in the operating of tractor automatic pick-up hitch systems. Any number of operators may be secured together by studs which may also be used to mount the control onto the machine. These studs are normally supplied with banked operator sets. An alternative means of mounting can be done by using the two holes in the base of the operator and securing with 1/4" diameter bolts. The lever moves through an angle of 120° which produces a maximum of 45mm cable travel. The operating handle can be supplied cranked to a specific position if required. A spring return-to-center version can be supplied. Also available is a detent version which can be supplied to hold the lever in a predetermined position..
Specifications
| Certificate: | IATF16949 | |
| Brand: | PHIDIX | |
| Material: | Zinc And Plated Steel | |
| Primary Application: | Agricultural Equipment | |
| Mounting Options: | Base Mounting Via Two Holes With 1/4" Diameter Bolts | |
| Lever Operating Angle: | 120° | |
| Maximum Cable Travel: | 45 MM |
Applications
● Automatic pick-up hitch release control cable operation
● Power take off engagement—disengagement
● Agricultural equipment
Features
● High lever to cable
● Movement ratios
● 120°angle produces 45mm travel
Material
● Zinc Based Die-Cast Body
● Plated Steel Internal Components
Leverstak Hand Control - CH400
