Unidrum Lever Industrial Metric Push-Pull And Pull-Only Hand Control
Product Description：

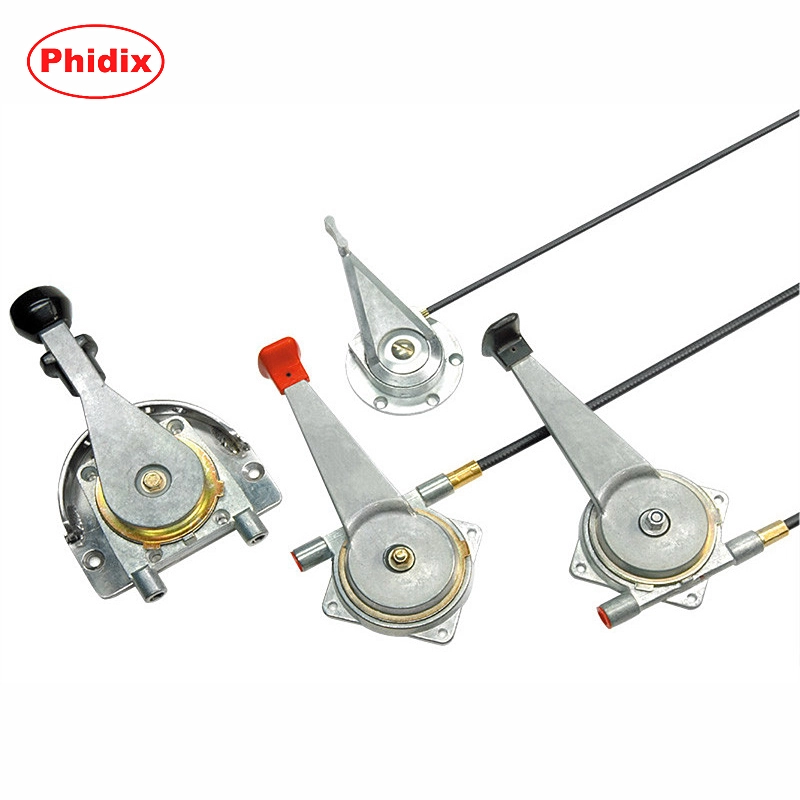

A control head designed primarily for hand throttle applications on commercial and industrial vehicles, and also suitable for many other uses. Compact and efficient for imparting light-to-medium pull-only or push-pull loads through flexible conduits and inner- members. Unidrum controls hold and operate up to 12kg push-pull or pull-only output loads. Mechanical advantage at knob is 5 to 1. There is a self locking nut for operator adjustment of friction setting. The adjustable stop plates allow 10° (5mm linear output) incremental travel adjustment. 50mm of cable travel requires approximately 90° lever travel. 75mm of cable requires approximately 135° lever travel. The lever position is adjustable in 60° increments to provide optimum operating range. Optional cable entry offers four mountings/directions of operation alternatives. Also available with a smaller handle for light duty applications or with a locking handle.
Specifications
| Certificate: | IATF16949 | |
| Brand: | PHIDIX | |
| Features: | Adjustable Friction Lock,Adjustable Mechanical Stops,etc | |
| Functions: | Parking Security, Emergency Braking, Vehicle Control |
Applications
● Medium to light duty throttle compactors
● Valve dump control jackhammers
● Hydraulic valve control concrete cutters
● Backhoe throttle
Features
● Adjustable friction lock
● 5 to 1 mechanical advantage
● Adjustable mechanical stops
Material
● Zinc Based Die-Cast Body, Drum and Lever
● Internal Long Life Nylon Bearings
● Optional Black Powder Coat Paint Finish
Unidrum Lever
● Hold and operate up to 11kg push-pull or pull-only output load. Mechanical advantage at knob is 5/1.
● Self-locking nut for operator adjustment of friction setting.
● Adjustable stop plates allow 10° incremental travel adjustment.
● Lever position is adjustable in 60° increments.
● Four optional cable entry alternatives.
● Rugged diecast zinc alloy material.
● Mount with (4) M5 screws or bolts.
Ordering Codes
CH205/206
CH260
CH240
CH220 (Miniature)
Cable Exit Positions
All line art dimensions are represented in millimeters
CH290 (Unidrum Operator Positive Lock)
• Hold and operate up to 12kg push-pull or pull-only output load. Mechanical advantage at knob is 5/1.
• Self-locking nut for operator adjustment of friction setting.
• Adjustable stop plates allow 10° (5.5mm linear output) incremental travel adjustment. 50mm of cable travel requires approximately 90° lever travel.
• Optional cable entry.
• Rugged diecast zinc alloy material.
• Side mount at 104 centres.
Output End Configurations
VLD Utility
VLD Utility
VLD Bristow®
