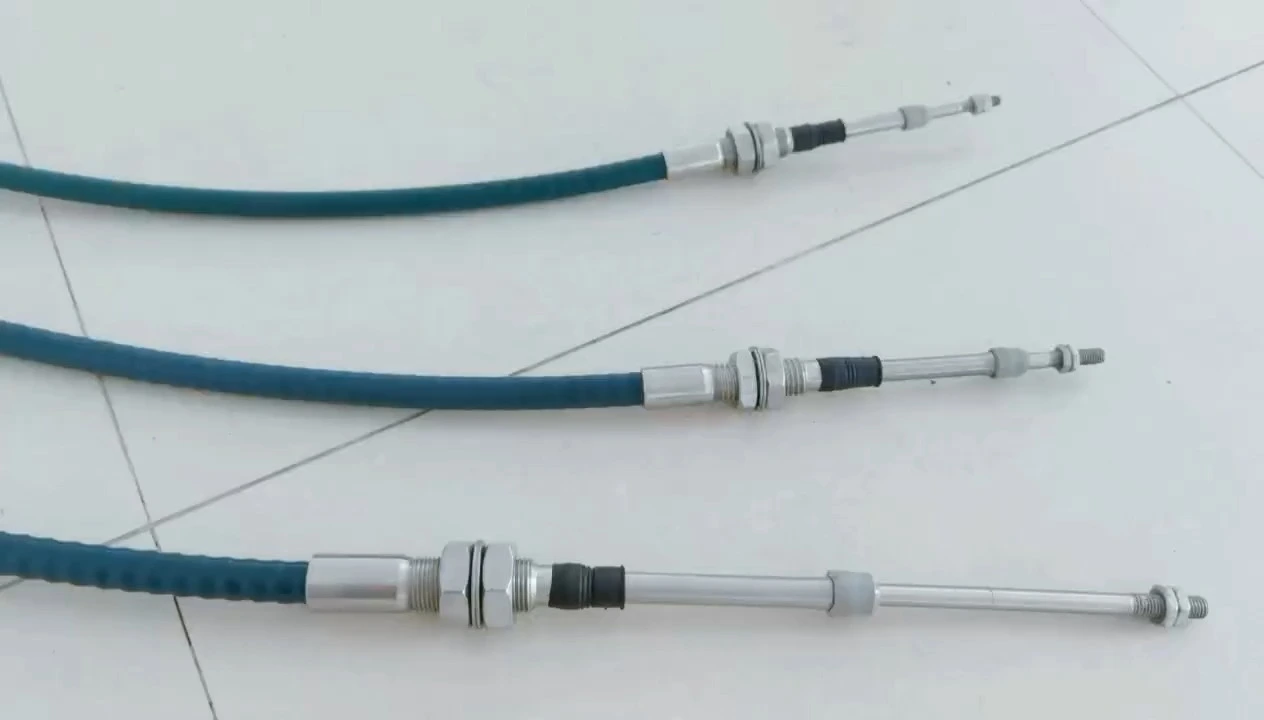

Push-Pull Mechanical Control Cable Assembly With Spherical Rod End Joints
Product Description：
The push-pull mechanical control cable with spherical rod end joints is engineered to deliver precise and dependable linear motion control in demanding remote actuation systems. Designed with high-quality ball joint (rod end) fittings at both ends, this cable assembly effectively accommodates angular deflection, vibration, and installation misalignment without compromising performance. Manufactured using a high-tensile steel inner wire and a compression-resistant outer conduit, the cable ensures smooth bidirectional motion, low friction operation, and excellent load-carrying capability. The spherical joint ends enhance articulation flexibility while minimizing stress concentration on connected components, resulting in improved durability and extended service life.This cable assembly is ideal for applications requiring consistent push-pull actuation under dynamic and high-vibration conditions.
Specifications
| Certificate: | IATF16949 |
| Brand: | PHIDIX |
| Cable Type: | Push-Pull Control Cable |
| End Fittings: | Ball Joint (Both Ends) |
| Operation: | Push & Pull Linear Motion |
| Cable Length: | Customizable |
| Stroke Length: | Customizable |
| Inner Core Material: | Carbon Steel / Stainless Steel |
| Outer Conduit Material: | Steel / PVC / HDPE Coated |
| Ball Joint Material: | Carbon Steel / Stainless Steel |
| Conduit Colour: | Black, Green, Grey |
| Optional Features: | Dust Boots, Corrosion Protection, Custom Threads |
Applications
● Commercial vehicles and specialty transport systems
● Construction and heavy-duty engineering equipment
● Agricultural and farm machinery
● Industrial automation and mechanical control systems
● Material handling and lifting equipment
● Railway and transit systems
● Marine control systems and offshore machinery
● Defense and special-purpose vehicles
Features
● Precision spherical rod end joints for angular compensation
● Smooth and accurate bidirectional push-pull operation
● High-strength steel inner core for superior load capacity
● Reinforced outer casing with excellent compression resistance
● Low friction and reduced mechanical backlash
● Designed for high-vibration and dynamic environments
● Customizable length, stroke, and end fittings available
Advantages
• Enhanced Installation Flexibility: Ball joints allow alignment tolerance and reduce assembly complexity.
• Extended Component Life: Minimizes side loading and mechanical stress on linkage systems.
• Reliable Motion Transmission: Maintains consistent linear actuation under demanding conditions.
• Improved System Efficiency: Reduced friction enhances responsiveness and control accuracy.
• Adaptable Design: Suitable for OEM customization across multiple industries.
Working Principle
When an operator actuates a control device—such as a lever, pedal, or handle—the applied force is transmitted through the inner steel core of the cable. The core moves longitudinally within the outer conduit, converting manual or mechanical input into controlled linear motion at the output end.The spherical rod end joints at both ends enable multidirectional articulation, allowing the cable to compensate for angular movement and structural shifts during operation. This design reduces lateral stress, prevents premature wear, and ensures smooth, stable, and precise motion transmission throughout the system’s operating life.
