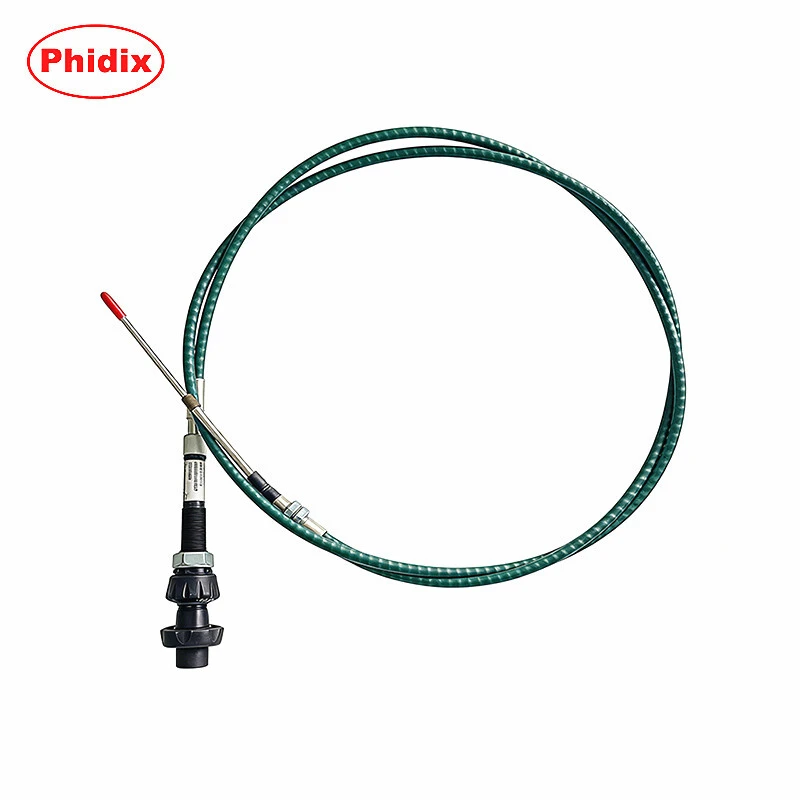

Precision Push-Pull Control Cable With Micro Adjustment Handle
Product Description：
The push-pull control cable with micro adjustment handle is engineered to provide highly accurate linear motion control with integrated fine-tuning capability. Designed for applications where precision positioning and repeatable adjustment are essential, this cable assembly combines robust mechanical strength with smooth operational performance.Featuring a built-in micro-adjust mechanism, the control handle allows precise incremental adjustment of stroke length or cable tension without disconnecting the system. The high-tensile steel inner core ensures reliable force transmission, while the reinforced outer conduit offers excellent compression resistance and protection against environmental factors. Its ergonomic handle design ensures comfortable operation and controlled adjustment, making it an ideal solution for throttle systems, valve regulation, engine control, and other applications requiring accurate mechanical calibration.
Specifications
| Certificate: | IATF16949 |
| Brand: | PHIDIX |
| Adjustment Range: | Micro-Adjustable (Customizable Stroke Length) |
| Inner Core Material: | Carbon Steel / Stainless Steel (Optional) |
| Outer Conduit: | HDPE-Lined Steel Conduit |
| Handle Material: | Aluminum Alloy / Engineering Plastic |
| Operating Temperature: | -40℃ To +120℃ |
| Load Capacity: | Customizable Based On Application |
| End Fittings: | Threaded / Clevis / Rod End (Optional) |
| Mounting Type: | Panel Mount / Bulkhead Mount |
| Customization: | Length, Fittings, Stroke, Handle Style,Etc |
| Applications: | Commercial Vehicles, Coaches, Etc |
| Conduit Colour: | Green |
Applications
This micro-adjust push-pull control cable is suitable for precision control systems across multiple industries:
● Commercial vehicles, coaches, and specialty transport
● Heavy-duty trucks and construction equipment
● Agricultural and forestry machinery
● Marine throttle, clutch, and gear control systems
● Industrial automation and process control equipment
● Generator sets and engine management systems
● Military and special-purpose vehicles
Features
● Integrated micro-adjust handle for fine and accurate tuning
● Smooth, low-friction push-pull motion
● High-strength steel inner core for dependable load handling
● Durable outer conduit with strong compression resistance
● Corrosion-resistant materials for harsh environments
● Ergonomic handle design for precise manual control
● Flexible routing capability for complex installations
● Custom lengths, strokes, and end fittings available
Advantages
● Superior Precision: Enables accurate calibration and controlled incremental adjustment.
● Quick Fine-Tuning: Adjustment can be performed without dismantling connected components.
● Extended Service Life: Designed to withstand vibration, dust, moisture, and heavy-duty usage.
● Improved Operational Stability: Maintains consistent control under dynamic conditions.
● OEM Flexibility: Multiple configurations available to meet specific design requirements.
● Reduced Maintenance Costs: Durable construction minimizes wear and downtime.
Working Principle
When the operator rotates or actuates the micro-adjust handle, the internal fine-thread mechanism converts small rotational input into precise linear displacement of the inner cable core. This controlled movement adjusts the connected component—such as a throttle lever, valve, or actuator—with high accuracy. The inner core slides smoothly within the protected outer conduit, which absorbs compression forces and shields the cable from external contaminants. The micro-adjust feature ensures repeatable positioning and stable performance throughout the cable’s full operating stroke.
