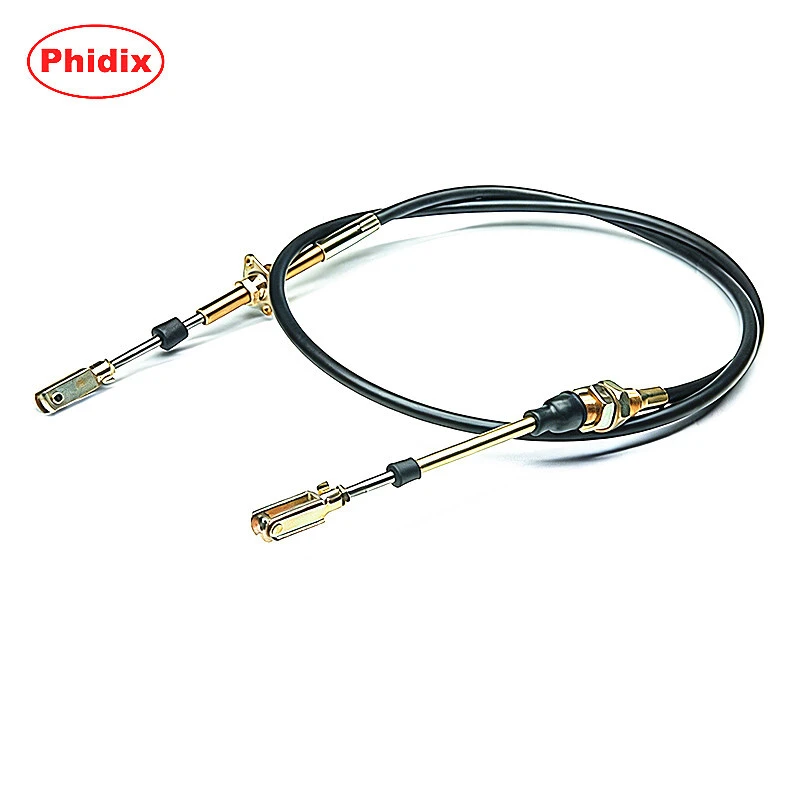

Push-Pull 4B Industrial Control Cable Assembly
Product Description：
The push-pull 4B industrial control cable assembly is a commercial-grade, cost-effective mechanical control solution designed for simple yet demanding push-pull applications. Engineered for durability, smooth operation, and reliable performance, this cable assembly delivers precise linear motion control in harsh industrial environments. Available in four different sizes, the 4B series is suitable for a wide range of load requirements and installation configurations. Its armored inner member and reinforced conduit construction ensure excellent compression strength, low-friction performance, and long service life even under continuous working stress.
Specifications
| Certificate: | IATF16949 |
| Brand: | PHIDIX |
| Color: | Black |
| Available Sizes: | 4 Standard Sizes |
| Operating Temperature: | -40°C To +100°C |
| Mounting Options: | Swivel Flange, Metric Thread, UNF Thread |
| Material: | Plated Steel Standard, Optional Stainless Steel |
| Abrasion Resistance: | Highly Abrasion-Resistant |
| Jacket Options: | PVC,PTFE, PE, Etc |
Applications
● Clutch controls
● Heavy duty lanyards
Materials
● Plated Steel Standard, Optional Stainless Steel
● Plastic Coated High Tensile Steel Lined Conduit
● Armored Push-Pull Steel Innermember
● Black polypropylene
Features
● Truck crane — cross link system
● In conjunction with most control lever systems
● Power take off
● Gear selection
● Hydraulic valve systems
● Accelerator systems
● Stainless steel end rod options available
Push-Pull 4B Specifications
Push-Pull 4B30 — M5
Push-Pull 4B45 — M8
Push-Pull 4B45 — M6
Push-Pull 4B60 — M10
All line art dimensions are represented as follows: in (mm)
Note: Threads available in both UNF and metric
