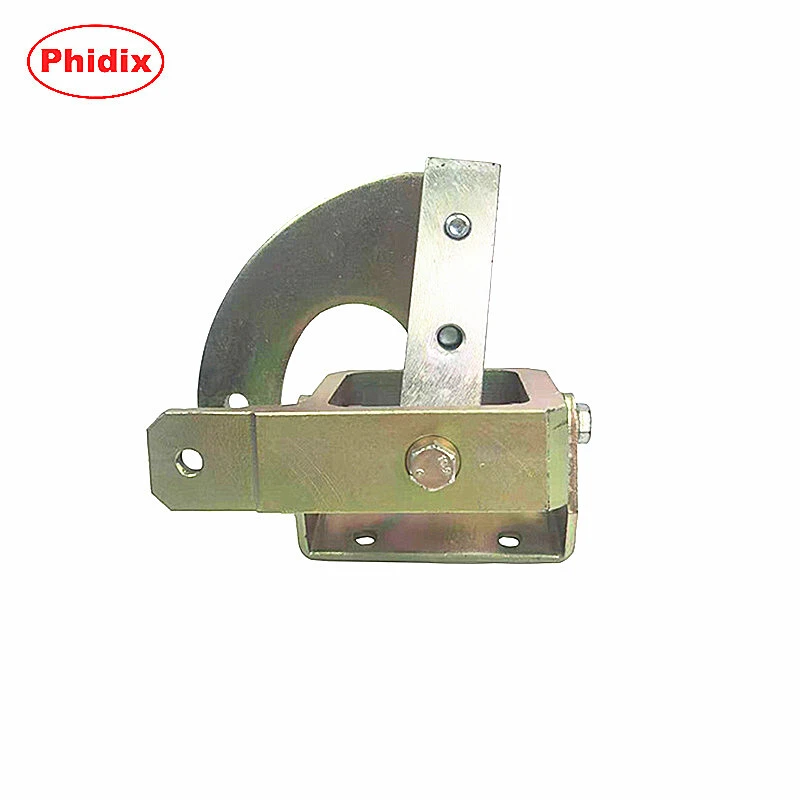

Heavy-Duty Zinc-Plated Mechanical Control Lever Bracket
Product Description：
This heavy-duty mechanical control lever bracket is a precision-engineered metal component designed to provide robust mounting and actuation support for push-pull control cable systems. Constructed from high-grade steel with a corrosion-resistant zinc-plated finish, this bracket features a curved sector plate and adjustable lever arm, enabling reliable conversion of linear cable motion into controlled angular movement. Ideal for throttle control, valve actuation, and mechanical locking systems, it delivers stable performance in demanding industrial, marine, and commercial vehicle environments. Its versatile mounting design and adjustable pivot point ensure seamless integration with a wide range of control cable setups, offering durability and precision for critical mechanical actuation tasks.
Specifications
| Certificate: | IATF16949 |
| Brand: | PHIDIX |
| Surface Finish: | Zinc-Plated (Yellow Chromate) For Corrosion Resistance |
| Lever Arm: | Vertical Steel Plate With Mounting Holes For Cable Attachment |
| Sector Plate: | Curved Semi-Circular Design To Guide Angular Lever Travel |
| Shift Stroke: | Customizable Depending On Transmission Requirements |
Applications
● Industrial Machinery: Throttle control, valve actuation, and mechanical locking systems for generators, pumps, and material handling equipment
● Marine Equipment: Remote control of boat throttle, gear shift, and marine valves
● Commercial Vehicles: Auxiliary system control for trucks, buses, and utility vehicles
● Agricultural Equipment: Tractor implement control and throttle actuation
● Specialty Equipment: Custom-built mechanical rigs, mobile workshops, and off-highway vehicles
Features
● Zinc-Plated Corrosion Resistance: Yellow chromate zinc plating protects against rust, ideal for marine and high-humidity environments
● Adjustable Pivot Design: Hexagonal bolt pivot allows fine-tuning of lever tension and travel range
● Curved Sector Plate: Guides controlled angular movement, ensuring precise linear-to-rotary motion conversion
● Multi-Point Mounting: Multiple pre-drilled holes for flexible, secure installation on various surfaces
● Robust Steel Construction: Heavy-duty steel components withstand high loads and vibration
● Versatile Cable Attachment: Lever arm mounting holes accommodate standard push-pull cable end fittings
