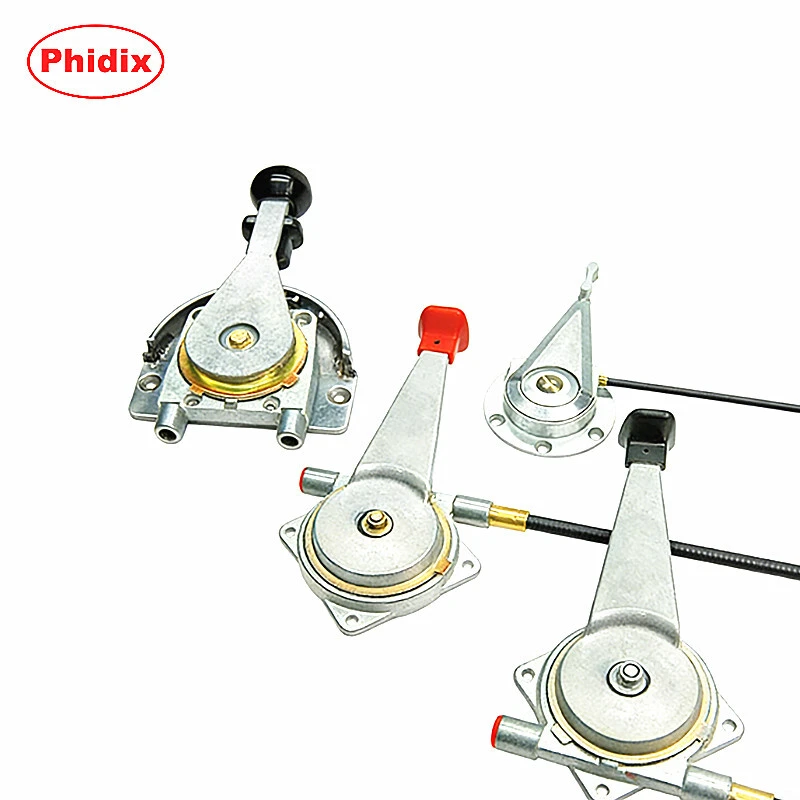

Unidrum Lever Industrial Push-Pull & Pull-Only Hand Control Lever – Compact Throttle Control Lever
Product Description：
The unidrum lever industrial hand control is a compact, high-performance throttle control head engineered for precise mechanical actuation in push-pull and pull-only cable systems. Designed for light-to-medium duty applications, it delivers a 5:1 mechanical advantage, enabling smooth and efficient control of loads up to 11kg.
This versatile control lever features a self-locking friction adjustment nut, allowing operators to fine-tune resistance for stable and accurate positioning. The inclusion of adjustable stop plates ensures controlled cable travel, with precise increments for customized operation.
Specifications
| Certificate: | IATF16949 |
| Brand: | PHIDIX |
| Product Type: | Control Lever |
| Control Mode: | Push-Pull & Pull-Only |
| Maximum Load Capacity: | Up To 11KG |
| Lever Rotation Range: | 90° / 135° (configurable) |
| Cable Entry: | 4-directional (multi-orientation) |
| Friction Adjustment: | Self-locking Nut |
| Material: | Zinc Based Die-Cast Body, Drum And Lever |
| Mounting Type: | Panel Mount / Bracket Mount |
| Operating Temperature: | -40°C to +120°C |
| Customization: | Available Upon Request |
Applications
● Medium to light duty throttle compactors
● Valve dump control jackhammers
● Hydraulic valve control concrete cutters
● Backhoe throttle
Features
● Hold and operate up to 11kg push-pull or pull-only output load. Mechanical advantage at knob is 5/1.
● Self-locking nut for operator adjustment of friction setting.
● Adjustable stop plates allow 10° incremental travel adjustment.
● Lever position is adjustable in 60° increments.
● Four optional cable entry alternatives.
● Rugged diecast zinc alloy material.
● Mount with (4) M5 screws or bolts.
Material
● Zinc Based Die-Cast Body, Drum and Lever
● Internal Long Life Nylon Bearings
● Optional Black Powder Coat Paint Finish
