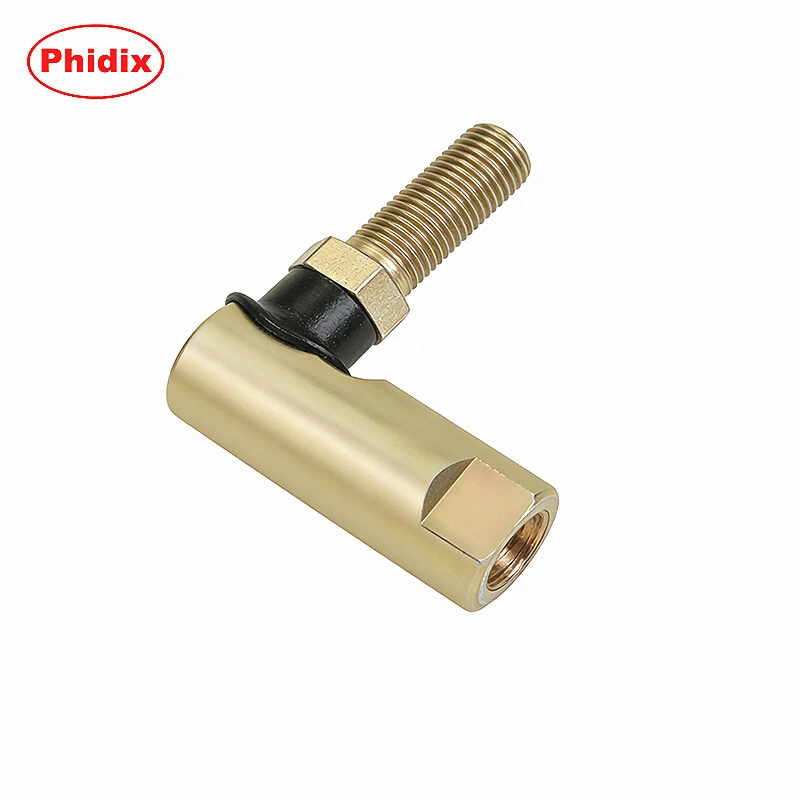

R-G Series Heavy-Duty Steel Ball Joints With Staked Construction & Protective Rubber Grommet

Product Description：

The R-G series features a cost-effective and widely applied metal-to-metal ball joint construction designed for reliable mechanical linkage and smooth articulation. Both the ball stud and housing are manufactured from high-quality low carbon steel to ensure strength and durability in demanding applications. The ball stud undergoes precision heat treatment to enhance hardness, wear resistance, and overall service life. For superior corrosion resistance and a uniform finish, all components are zinc plated and further treated with a yellow dichromate coating. The hardened precision ball is carefully inserted into the housing and secured through a controlled crimping process. This method ensures the ball stud maintains smooth rotational movement while minimizing unwanted play and maintaining structural integrity. A flexible rubber grommet seal is integrated to protect the internal joint components from dust, dirt, and other contaminants, extending the operational lifespan of the assembly. The R-G series is available with both right-hand and left-hand threads, and metric thread options can be provided upon request. Various configurations and sizes are available to accommodate different mechanical linkage and motion control requirements across industrial, agricultural, and automotive applications.
