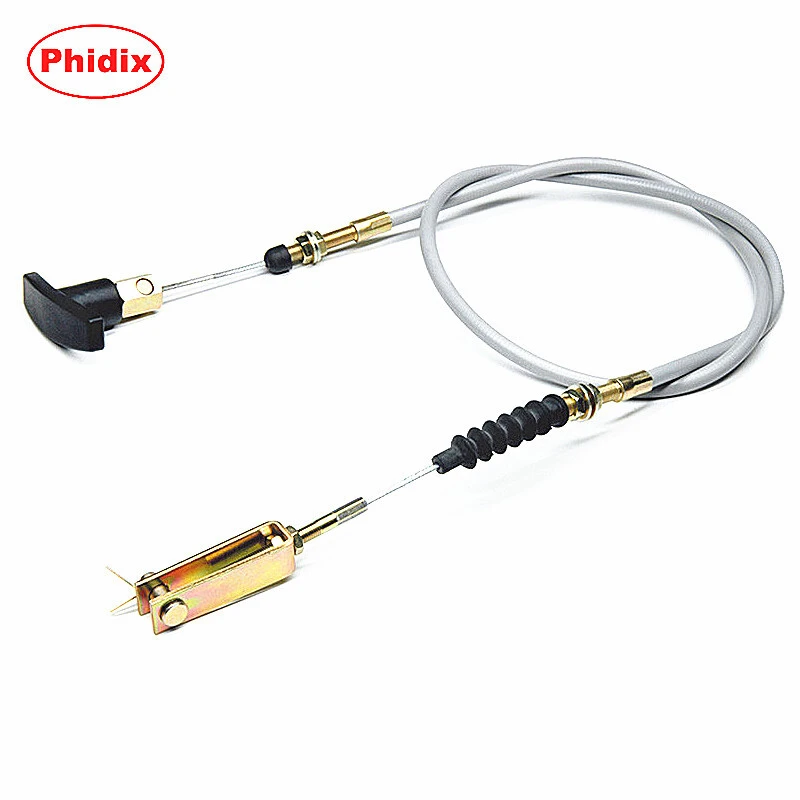

Pull-Only T-Flex Industrial Control Cable Assembly
Product Description：
Commercial cost effective product range for pull only applications. This series offers a wide range of sizes and combinations, for applications with loads from 0kg to 1000kg. The inner cable is a multi-strand, high-tensile steel cable, tinned or galvanized for corrosion resistance. Armored strands and solid wires are also available. The outer is a flexible conduit comprising one or two high-tensile steel wires, wound spirally to give maximum compression strength. All sizes are available covered with either polypropylene or PVC for protection, or uncovered. Some sizes can be fitted with high density polypropylene liner for extra smooth low-friction operation.
Specifications
| Certificate: | IATF16949 |
| Brand: | PHIDIX |
| Conduit Material: | PVC, PE, Etc |
| Length: | Can Be Customized |
| Cable Colour: | Green,Grey, Etc |
| Process: | Cutting, Welding, Punching |
| Applications: | Clutch Cable, Throttle Cable, Hand Brake Cable, Engine Stop Cable |
| Suggested End Fittings: | Clevises, Eye Ends, Swivels, Knobs |
Applications
● Clutch cable
● Throttle cable
● Hand brake cable
● Engine stop cable
Features
● Multi-strand, high-tensile, steel cable
● Polypropylene, PVC or uncoated
● High density polypropylene liner available
● Can fit a variety of accessory components, available in both UNF and metric thread options
● Wide range of sizes combinations w/loads 0kg — 1000kg
● Armored strands and solid wires available
Material
● Plated Steel Standard, Optional Stainless Steel
●Pull Only Twin-V High Compression Load Conduit, Lined and Unlined
Suggested End Fittings
● Clevises
● Eye Ends
● Swivels
● Knobs
