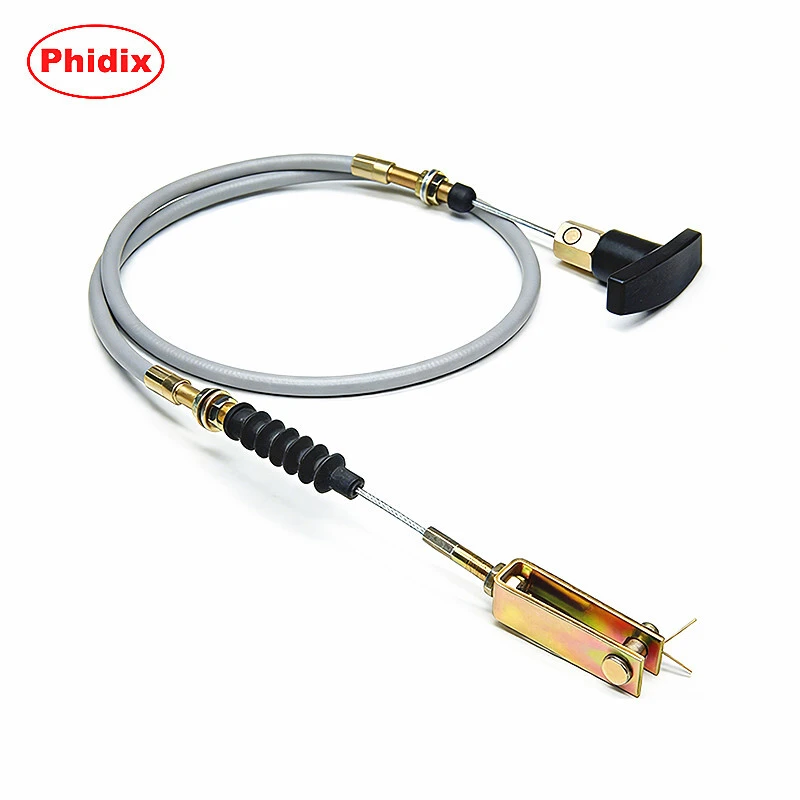

High Tensile Pull-Only T-Flex Control Cable Assembly For Clutch Throttle Emergency Stop Mechanisms
Product Description：
Phidix Pull-Only T-Flex Control Cable: Built to Withstand, Engineered to Flex
For industrial systems that demand reliable linear actuation under tension-only loads, the Phidix Pull-Only T-Flex Cable offers a performance-optimized solution—combining high tensile strength, low deflection, and a durable multi-layer conduit design. This series is purpose-built to operate in environments where space is limited, loads are repetitive, and uptime is non-negotiable.
Trusted in clutch systems, throttle actuation, brake lockouts, and engine stop mechanisms—T-Flex is engineered to perform where conventional cables can't keep up.
Specifications
| Certificate: | IATF16949 |
| Brand: | PHIDIX |
| Length: | Can Be Customized |
| Travel Range： | 1.5"–6" (Custom Travel On Request) |
| Min. Bend Radius： | 5" Typical |
| Temp Tolerance： | -40°C To +105°C (Varies By Jacket Type) |
| Core Diameter Options： | 0.078" / 0.125" / 0.188" |
| Transmission Direction: | Pull Only Unidirectional |
| Wide Range Of Sizes Combinations W/Loads: | 0KG — 1000KG |
| Suggested End Fittings: | Clevises,Eye Ends,Swivels,Knobs |
| Part Material: | Carbon Steel Or Stainless Steel |
Internal Structure
Features
● Multi-strand, high-tensile, steel cable
● Polypropylene, PVC or uncoated
● High density polypropylene liner available
● Can fit a variety of accessory components, available in both UNF and metric thread options
● Wide range of sizes combinations w/loads 0kg — 1000kg
● Armored strands and solid wires available
Suggested End Fittings
● Clevises
● Eye Ends
● Swivels
● Knobs
Full custom assemblies available to match your panel layout, control handle, or actuation lever.
Typical Applications
●Clutch Cables-Heavy- duty truck, agricultural machinery, and marine engine disengagement systems
● Emergency Stop Lines- Manual fuel shutoff, ignition kill switches, and industrial emergency interlock mechanisms
●Throttle Pull Line- Mechanical regulation for gensets, mobile hydraulics, and industrial combustion engines
● Lockout & Disconnect System- Industrial latch mechanisms, safety interlocks, and equipment shutdown controls
● Complex Routing Applications- Industrial equipment with tight, intricate cable routing (e.g., packaging machinery, construction equipment)
