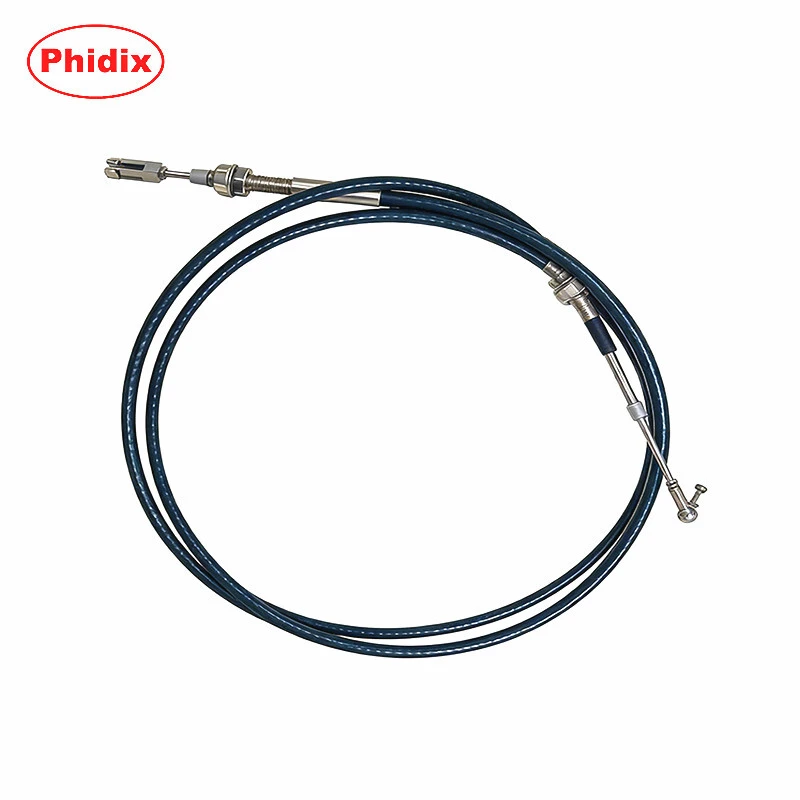

Gear Shift Control Cable Assembly For Transmission Systems
Product Description：
The gear shift control cable is a precision mechanical control solution designed to transmit accurate push-pull motion between the gear lever and the transmission mechanism. Manufactured by PHIDIX, this cable assembly features a high-strength stainless steel inner core combined with a durable, flexible outer sheath to ensure smooth operation, long service life, and reliable performance in demanding environments.Engineered for both manual and automatic transmission systems, the gear shift cable delivers precise gear engagement while minimizing friction and mechanical resistance. Its robust construction provides excellent resistance to wear, corrosion, moisture, and temperature variations, making it suitable for automotive, marine, agricultural, and industrial equipment applications. The cable assembly can also be customized with different lengths, end fittings, and mounting configurations to meet specific system requirements.
Specifications
| Certificate: | IATF16949 |
| Brand: | PHIDIX |
| Outer Casing Material: | PVC, PTFE |
| Cable Diameter: | 2mm–10mm (Customizable) |
| Cable Length: | Customizable |
| Customization: | Length, Stroke, Fittings, Materials |
| Operating Temperature: | -40℃ To +120℃ |
| Corrosion Resistance: | Optional Stainless Steel Components |
| Function： | Mechanical Push-Pull Motion Transmission |
| End Fittings： | Clevis, Ball Joint, Eyelet, Threaded Rod, etc |
| Conduit Colour: | Black, Grey, Green |
| Applications: | Automotive, Industrial, Agricultural, Marine,etc |
Applications
● Manual and automatic transmission systems
● Construction and agricultural machinery
● Marine throttle and engine control systems
● Industrial vehicles and forklifts
● Heavy-duty equipment control systems
● Off-road and utility vehicles
Features
● High Flexibility: Delivers smooth, consistent motion transmission even under variable operating conditions and tight routing.
● Durable Construction: Stainless steel inner core paired with an abrasion-resistant outer jacket for extended service life.
● Weatherproof Design: Resistant to corrosion, moisture, and extreme temperatures, ensuring reliable performance in harsh environments.
● Low Friction Operation: Inner liner minimizes sliding resistance, enabling effortless gear shifting.
● Customizable Configurations: Available in a wide range of lengths, end fittings, and materials to match OEM or custom application requirements.
Installation & Maintenance Guidelines
● Pre-Installation Check: Verify that the new cable’s routing path and dimensions match the original cable to ensure proper fit and operation.
● Pre-Lubrication: Apply light oil to the cable core before installation to reduce initial friction and prevent premature wear.
● Heat Clearance: Maintain adequate spacing between the cable and heat sources during routing to avoid heat-induced damage and ensure free movement.
● Function Test: After installation, cycle the gear lever through its full range of motion to confirm smooth push/pull operation in both directions.
● Routine Maintenance: Periodically flush the cable with compressed air to remove debris; for optimal performance, replace the cable at manufacturer-recommended intervals.
Working Principle
The PHIDIX Gear Shift Control Cable functions as a mechanical force-transmission linkage. When the driver moves the gear lever, the flexible stainless steel inner core slides within the low-friction inner liner, converting linear or angular input motion into precise output motion at the transmission. The durable outer sheath protects the core from abrasion, moisture, and heat, while the end fittings securely connect the cable to the gear lever and transmission shift forks. This design efficiently transfers the driver’s input to engage or disengage gears, ensuring smooth, reliable gear changes with minimal energy loss.
Available End Fittings And Accessories
PHIDIX offers a wide range of compatible fittings and accessories for cable assemblies, including:
● Clevis assemblies
● Pivot joints
● Ball joints
● Terminal eye fittings
● Shims
● Mounting clamps
● U-bolt assemblies
● Mounting brackets
These accessories allow flexible installation and adaptation to different mechanical systems.
