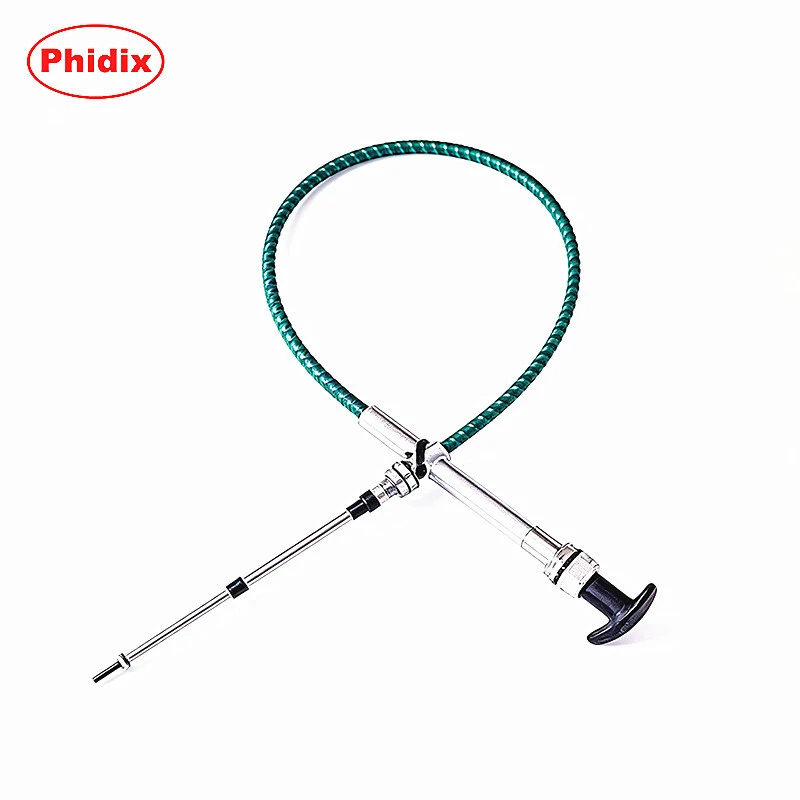

Twist Lock Push Pull Control Cable For Precise Mechanical Adjustment And Position Locking
Product Description：
The twist lock push pull control cable is a versatile mechanical control solution designed for applications requiring precise positioning, reliable locking, and flexible motion transmission. This cable assembly combines push-pull actuation with a twist-to-lock mechanism, allowing operators to easily adjust and secure the position of mechanical components.
The control cable features a durable inner core housed within a reinforced outer conduit, ensuring smooth movement and long service life even in demanding environments. The ergonomic T-handle design allows the cable to travel freely along its stroke until the desired position is reached. By simply rotating the handle 1/8 turn in either direction, the cable locks securely in place and can hold loads of up to 100 lb.
This design is particularly effective in applications where installation space is limited and traditional mechanical linkages such as rod systems or bell cranks are not suitable. The twist lock push pull cable is widely used in industrial machinery, heavy equipment, vehicle controls, and throttle or valve control systems.
Specifications
| Certificate: | IATF16949 |
| Brand: | PHIDIX |
| Jacket Options: | PVC,PTFE, PE, etc |
| Material: | Stainless Steel Or Plated Carbon Steel / Plastic Coated Carbon Steel Conduit And Inner Member / Plastic Seal / Plastic Knob |
| Process: | Cutting, Welding, Punching |
| Feature: | High Temperature Resistance, Low Loss , Long Service Life |
| Customization: | Length, Stroke, Fittings, Materials |
| Applications: | Heavy Equipment, Vehicle Controls, Valve Control Systems,etc |
Application Areas
● Automotive & Heavy Equipment: Vehicle throttle control, parking brake systems, and off-road vehicle accessory controls.
● Industrial Machinery: Conveyor systems, material handling equipment, and machine tool positioning.
● Marine & Aerospace: Boat throttle/shift controls, aircraft component actuation, and maritime hatch locking systems.
● Agricultural Equipment: Tractor implement control, irrigation system adjustment, and harvesting machinery.
● Specialty Vehicles: RVs, utility trucks, and construction machinery where space-efficient control is critical.
Features
● Free Travel T-Handle: The T-handle can move freely along the full control stroke until locked, enabling unrestricted adjustment.
● 1/8-Turn Locking Mechanism: Rotating the T-handle 1/8 turn in either direction securely locks loads up to 100 lb., with quick and easy unlocking.
● Space-Efficient Design: Ideal for tight installations where rod linkages or bell cranks are not feasible.
● Self-Locking Functionality: Eliminates the need for secondary locking devices, maintaining position securely under load.
● Micro-Adjustment Capability: Fine-tune control positioning via handle rotation for precise actuation.
● Dual Control Compatibility: Works with both push-pull cables and pull-only cable systems.
Function
Self-locking, micro adjustment by rotating handle, control a push pull cable or a pull cable.
