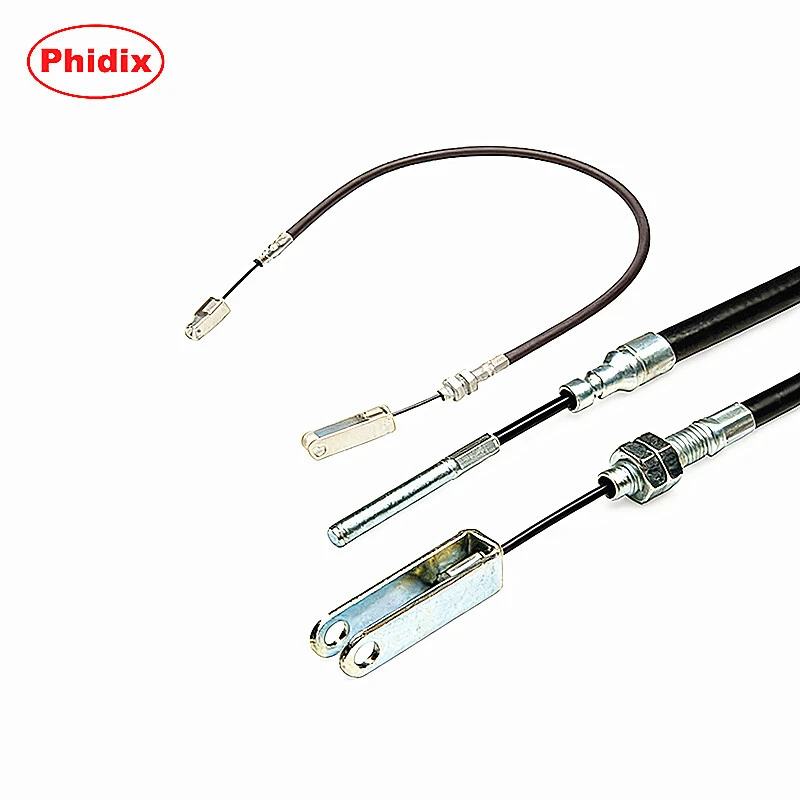

Pull Only Brake Control Cable Assembly With Optional Threaded End Rod
Product Description：
The pull only brake control cable assembly with optional threaded end rod is a heavy-duty mechanical control solution engineered to transmit linear pulling force between two mechanical components without the need for rigid linkages such as rods, levers, or bellcranks.Designed specifically for high-load, low-deflection applications, this cable assembly ensures reliable and precise force transmission even under demanding operating conditions. It is widely used in vehicle parking brake systems and various industrial pull-pull control mechanisms. With flexible routing capability, simplified installation, and low maintenance requirements, this pull-only brake cable provides a dependable solution for mechanical braking and actuation systems.
Specifications
| Certificate: | IATF16949 |
| Brand: | PHIDIX |
| Product Type: | Pull-Only Brake Control Cable |
| Load Capacity (1500 Series): | Up to 1500 lb |
| Load Capacity (3000 Series): | Up to 3000 lb |
| Minimum Bend Radius: | 5 inches |
| Core Material: | High-strength Carbon Steel |
| Conduit Material: | PVC,PTFE, PE, Etc |
| Optional End: | Threaded End Rod Available |
| Compatible End Fittings: | Brake fittings, Rod Ends, Clevises |
Applications
● Vehicle parking brake systems
● Mechanical brake actuation systems
● Pull-pull cable systems
● Industrial machinery controls
● Agricultural equipment
● Construction equipment
● Utility vehicles and specialty vehicles
Features
● High load capacity 1500 allows up to 1500lb loads
● Low deflection 3000 allows up to 3000lb loads
● Installed bend radius down to 5"
Advantages
● Eliminates need for rigid mechanical linkage
● Reduces system weight and installation complexity
● Easy to install and maintain
● Provides smooth and reliable pull operation
● Customizable length and end fittings
● Suitable for harsh environments
Available End Fittings
● 1500lb & 3000lb brake cable fittings
● Rod ends
● Clevis fittings
● Optional threaded rod ends for fine adjustment
● Custom end configurations are available upon request.
Pull-Only Brake Specifications
All line art dimensions are represented in inches
Order Code
