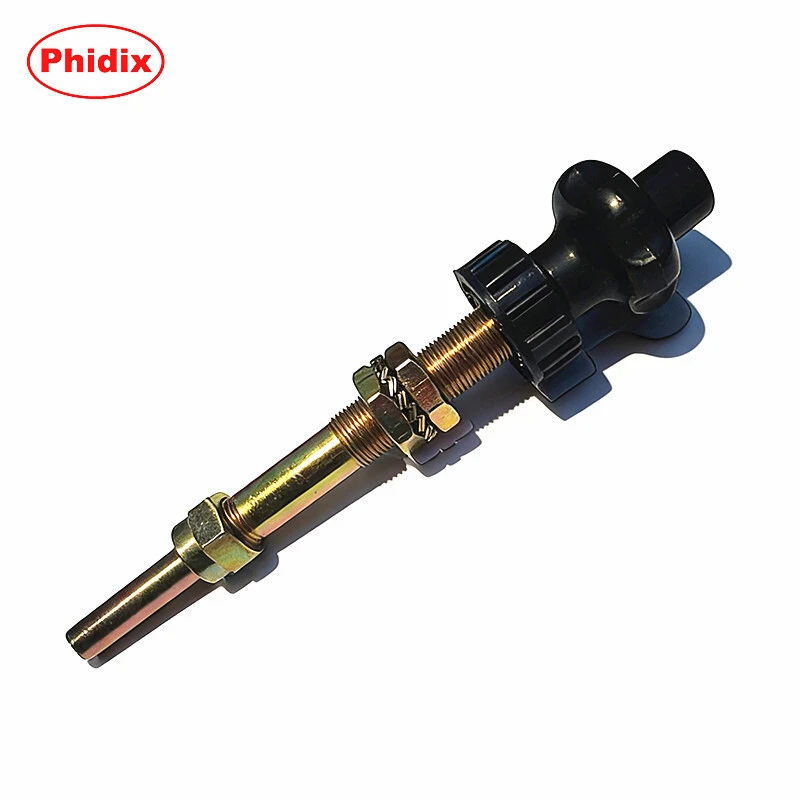

Micro Adjust Push-Pull Control Head Micro Adjustment Control Handle
Product Description：
Micro adjustment control heads are ideal for remote operation of a throttle, regulating valve, or other applications needing precise adjustment capabilities. Depressing the center button allows pushing or pulling the knob to make course travel adjustments. A flexible dust seal protects the internal release mechanism. Rotating the knob clockwise extends the output in the finite mode, and counter-clockwise retracts. Four and one-half turns results in 1" of linear travel. The maximum recommended load is 20lbs. Normal vibration does not affect the micro adjust setting. An optional friction lock accessory is available for applications where vibration is excessive. A disconnect feature and various output end configurations are available to suit a particular application.
Specifications
| Certificate: | IATF16949 |
| Handle Type: | Micro Adjust |
| Applications: | Throttle Control, Regulating Valve |
| Load: | 20lb Maximum |
| Travel: | 3.00" Maximum |
| Material: | Plated Carbon Steel Corrosion Proof Control Heads |
| Sample: | Available |
| Installation: | Panel Fixing Hole |
Materials
● Stainless Steel or Plated Carbon Steel
● Plastic Coated Carbon Steel Conduit and Innermember
● Plastic Seal
● Plastic Knob
Applications
● Throttle control
● Regulating valve
Features
● Load: 20lb maximum
● Travel: 3.00" maximum
● Threaded mount
● Friction lock
● Disconnect
Function
Stepless self-locking,rotatable handle,connected with a piece of cable.
