Heavy-Duty Manual Lever Control Cable Assembly for Throttle and Mechanical Actuation
Product Description：

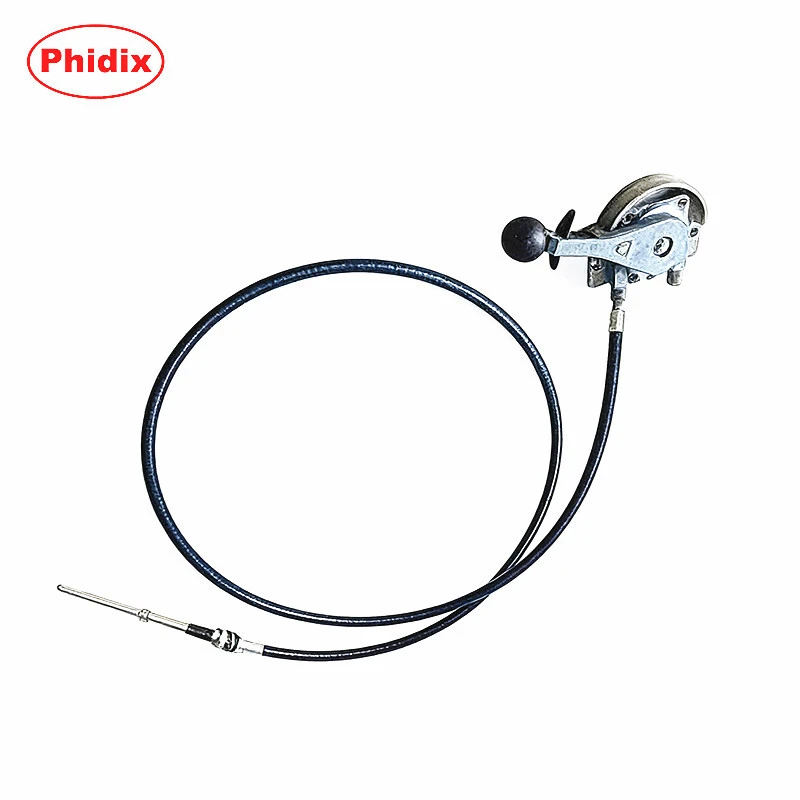

The heavy-duty manual lever control cable assembly is a reliable mechanical control system designed to deliver precise push-pull actuation for remote control applications. This assembly integrates a durable metal control lever, reinforced mounting bracket, and a flexible control cable, allowing operators to control mechanical components from a distance with smooth and responsive movement. The control lever features a rugged metal housing with an ergonomic knob handle, ensuring comfortable operation and long service life even in demanding working environments. The connected heavy-duty control cable with protective outer conduit enables accurate transmission of mechanical motion while protecting the internal wire from dust, moisture, and abrasion. Designed for versatility and durability, this control cable assembly is widely used in construction machinery, agricultural equipment, industrial machines, marine systems, and commercial vehicles. The cable length, travel distance, and end fittings can be customized to meet specific equipment requirements.
Specifications
| Certificate: | IATF16949 |
| Brand: | Phidix |
| Inner Cable Material: | Stainless Steel Or Carbon Steel |
| Outer Casing Material: | PVC, Polymer, Or Steel Spiral Conduit |
| Cable Diameter: | 2mm–10mm (Customizable) |
| Cable Length: | Customizable |
| Working Temperature: | –40°C To +120°C |
| Mounting Type: | Secure Bolt-On Base Mount |
| Lever Material: | Heavy-Duty Zinc-Plated Metal |
| Operating Stroke: | Depending On Custom Design |
| End Fittings: | Clevis, U-Shaped Fork, Ball Joint, Threaded Stud, Or Custom |
Application Areas
● Throttle control systems
● PTO engagement mechanisms
● Choke control for engines
● Construction machinery controls
● Agricultural equipment operation
● Marine throttle and engine controls
● Industrial machine actuation systems
● Remote latch or valve control systems
Features
● Integrated manual control lever for convenient mechanical operation
● Heavy-duty push-pull control cable for reliable motion transmission
● Ergonomic ball handle for comfortable and precise control
● Flexible cable routing around obstacles and tight spaces
● Protective outer conduit to resist abrasion and environmental damage
● Secure mounting bracket ensures stable installation
● Custom cable lengths and end fittings available
Working Principle
The control assembly operates through a push-pull cable transmission mechanism. When the operator moves the lever, the motion is transferred to the inner cable inside the flexible conduit. The inner cable slides forward or backward within the stationary outer housing, transmitting mechanical force to the connected component. This movement pushes or pulls the remote mechanism, allowing it to activate systems such as throttles, valves, or mechanical linkages. Because the cable housing remains fixed while the inner cable moves, the system can transfer motion over long distances and around bends, making it highly suitable for complex machinery layouts.
