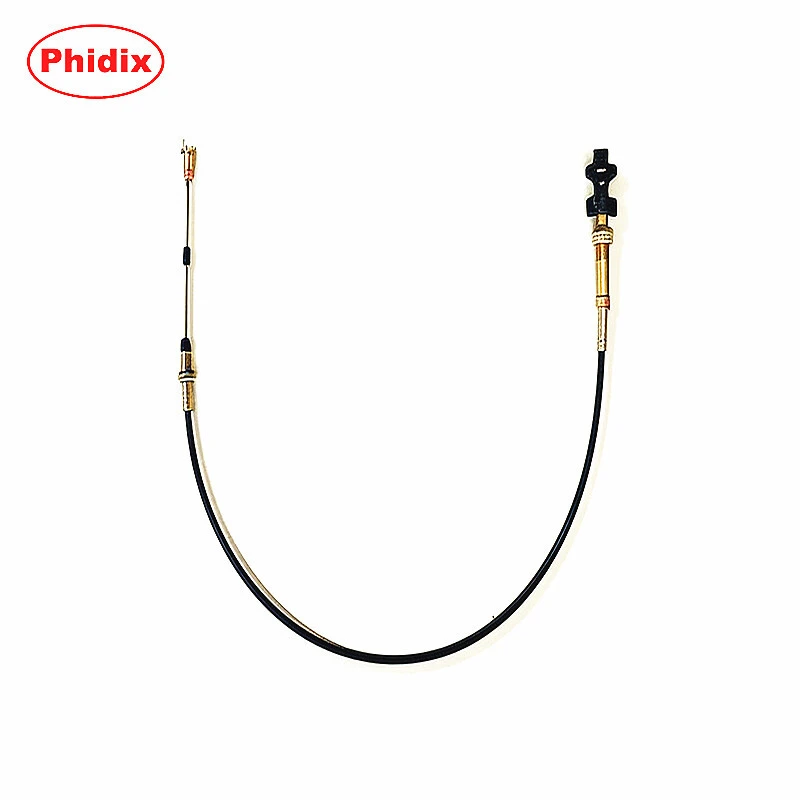

Customized Control Cable Assembly With Micro Adjust Handle
Specifications
| Brand: | PHIDIX |
| Operation Type | Push-Pull Or Pull-Only |
| Load Capacity: | Up to 1200 lb Compression / 3600 lb Tension |
| Cable Sizes: | VLD/LD/MD/HD Series(Or Customizable Per Requirements) |
| Materials： | Various Materials Available Upon Request |
| Inner Member： | Flexible Sliding Wire Rope Or Solid Core |
| Outer Conduit： | PVC,PTFE, PE, Etc |
| End Fittings： | Full Range Available |
| Customization： | Length, Fittings, Load Rating, Materials |
| Installation: | Simple Installation Design |
| Length: | Customizable |
Applications
● Throttle control for engines or machinery
● Regulating valve operation in fluid or gas systems
● Remote actuation of mechanical systems requiring fine adjustment
● Industrial machinery with vibration-prone environments
● Agricultural equipment requiring precise control
Features
● Micro Adjust Handle: Fine-tune output travel accurately without disassembling the system
● Flexible Dust Seal: Protects internal release mechanism from dust, debris, and moisture
● Push/Pull Operation: Center button allows coarse travel adjustment by pushing or pulling the knob
● Rotating Knob Adjustment: Clockwise extends the output, counter-clockwise retracts
● Vibration Resistant: Normal vibrations do not affect the micro adjust setting
● Precise Linear Travel: Four and a half turns results in 1 inch of output movement
Advantages
● Precision Control: Micro-adjust handle enables accurate motion control for sensitive applications
● Durable Construction: High-quality materials and dust-protected mechanism ensure long service life
● Easy to Use: Simple push/pull or rotation operation for both coarse and fine adjustments
● Vibration Resistant: Reliable in environments with moderate vibration
● Customizable: Cable length, travel ratio, and handle options can be tailored to specific requirements
