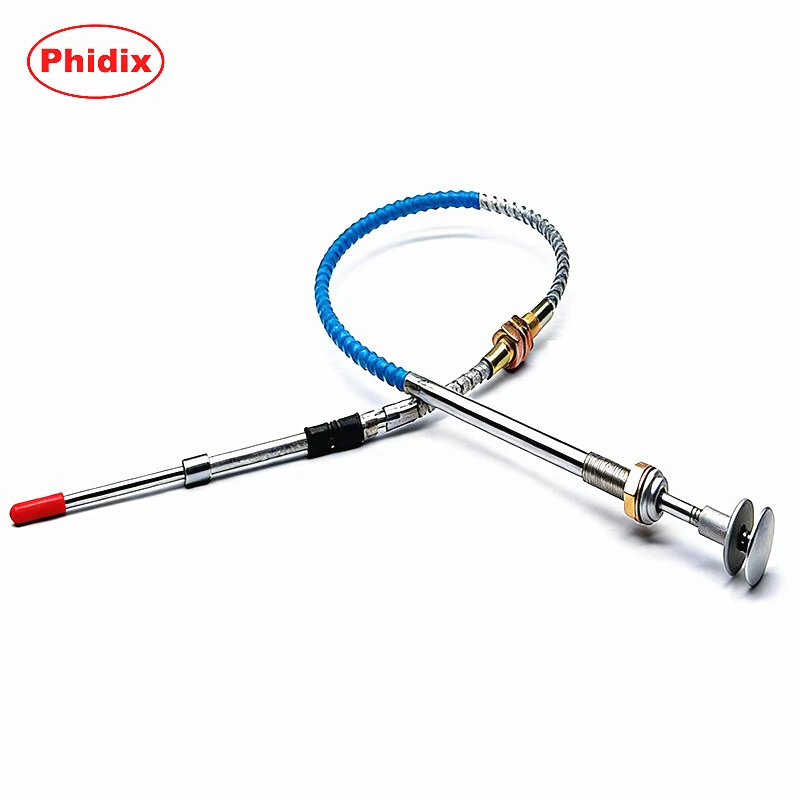

Button Lock Performance Push-Pull Control Head
Product Description：
The button lock control head cables remotely operate and lock in position heater, ventilation, air conditioning or numerous other mechanisms needing adjustment. Depressing the center button allows pushing or pulling the knob to make course travel adjustments. Routing of the flexible cable allows installation options that are not possible with solid linkages. Various output configurations are available to suit a specific application.
Specifications
| Certificate: | IATF16949 |
| Brand: | PHIDIX |
| Length: | Can Be Customized |
| Process: | Cutting, Welding, Punching |
| Travel: | 3.00" Maximum |
| Bend Radius: | 3.00" Minimum& 7.00" Minimum |
| Operating Temperature: | -65°F — 230°F |
Features
● Travel: 3.00" minimum
● Bend radius:3.00" minimum& 7.00" minimum
● Operating temperature: -65°F — 230°F
● Normal load(with swivel output fitting)
● 120lb tension
● 25lb compression
Applications
● Aircraft
● Heat control
● Vent control
● A/C control
● Engine cowl control
Material
● Stainless Steel or Plated Carbon Steel
● Plastic Coated Carbon Steel Conduit and Innermember
● Plastic Seal
● Plastic Knob
Ordering Codes
Standard Output - Button Lock 565-553
Solid Wire Output - Button Lock 565-554
All line art dimensions are represented in inches
